Main Concepts

This page describes main terminologies that are in use in RPG++.

Project Structure

An RPG++ project consists of a proj.rpgpp file and directories for each resource type in the engine. Each resource has an extension in its filename that is in use in RPG++ only. Resources themselves are JSON format files that follow a specific ‘schema’ that is specific to that resource type.

For example, a TileSet file would have the .rtiles extension and has only ‘source’, ‘tileWidth’ and ‘tileHeight’ fields in it.

Example of TileSet file contents:

{
    "source": "images/Hills.png",
    "tileWidth": 16,
    "tileHeight": 16
}

Resource types in RPG++

Some resource types may have fields/properties that refer to a resource of another type.

For example, TileSet has a ‘source’ field that refers to an image resource called ‘Hills.png’.

"source": "images/Hills.png"

Such fields have the name of the directory that contains the specific resource type. In this example, images are in the ‘images’ directory, which is a subdirectory of the project root directory.

Here is a list of all resource types:

• TileSet

Rooms and TileSets

When we use rooms or tilesets, we must understand the terms ‘world position’ and ‘atlas position’

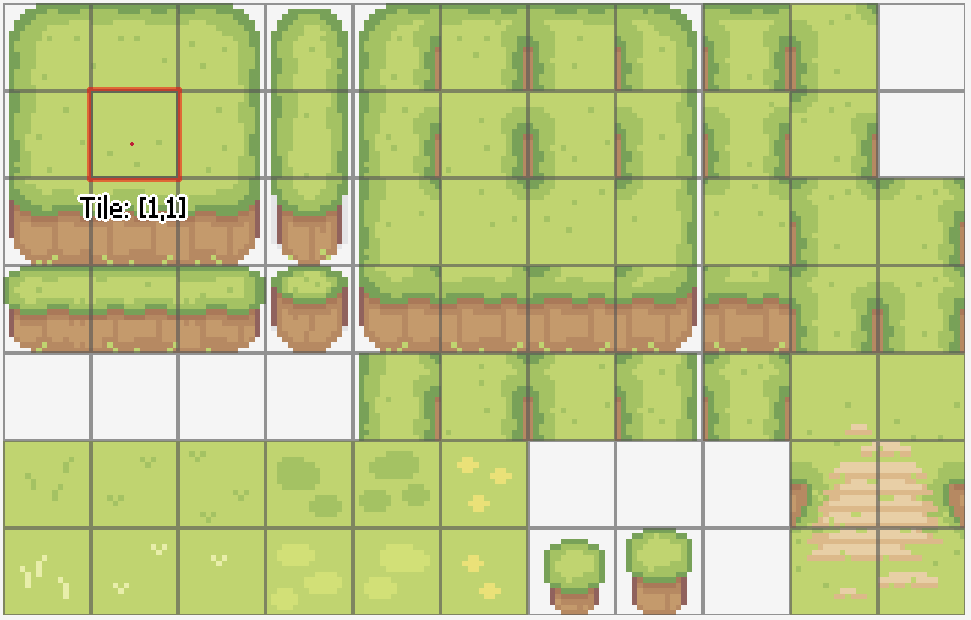

The ‘atlas position’ is the one that is used to identify a tile from a TileSet.

The ‘world position’ is the one that a tile from a Room can have. Tiles from Rooms can have both an ‘atlas position’ and a ‘world position’.
